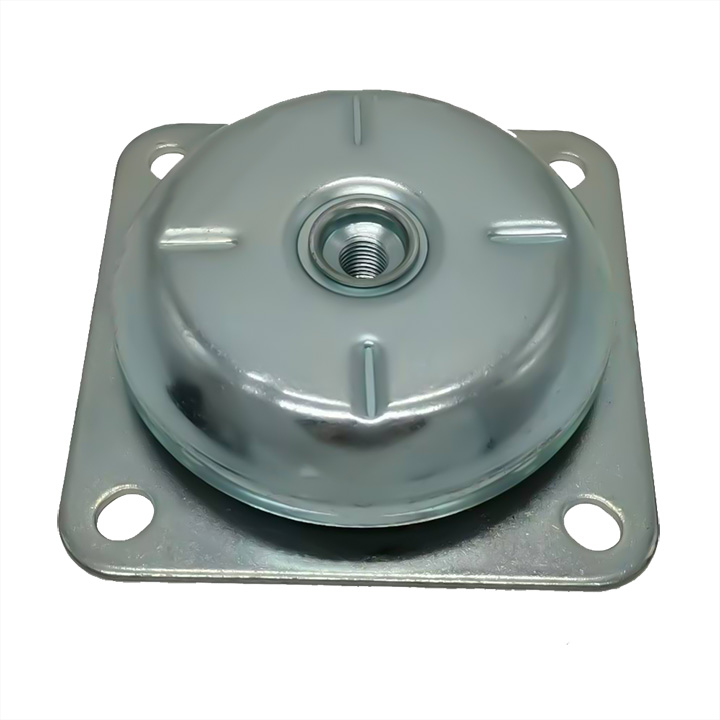

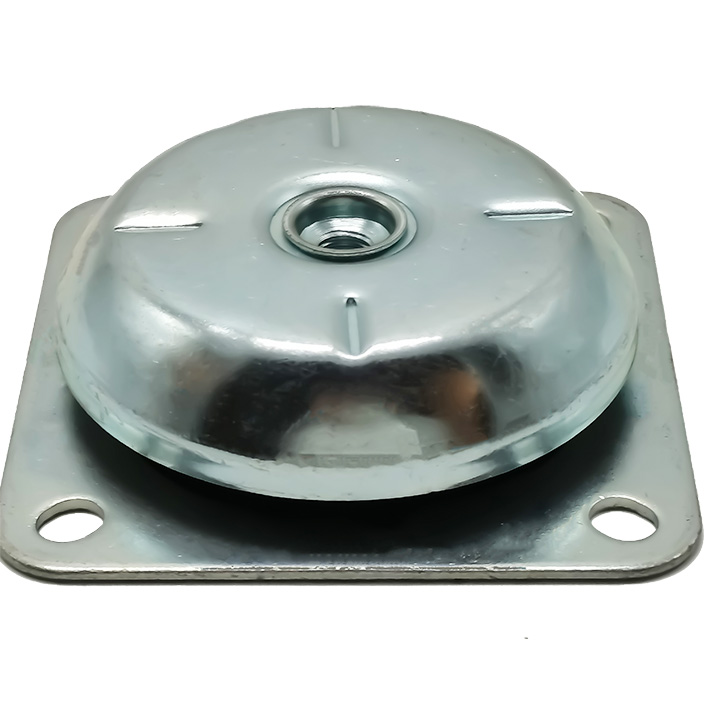

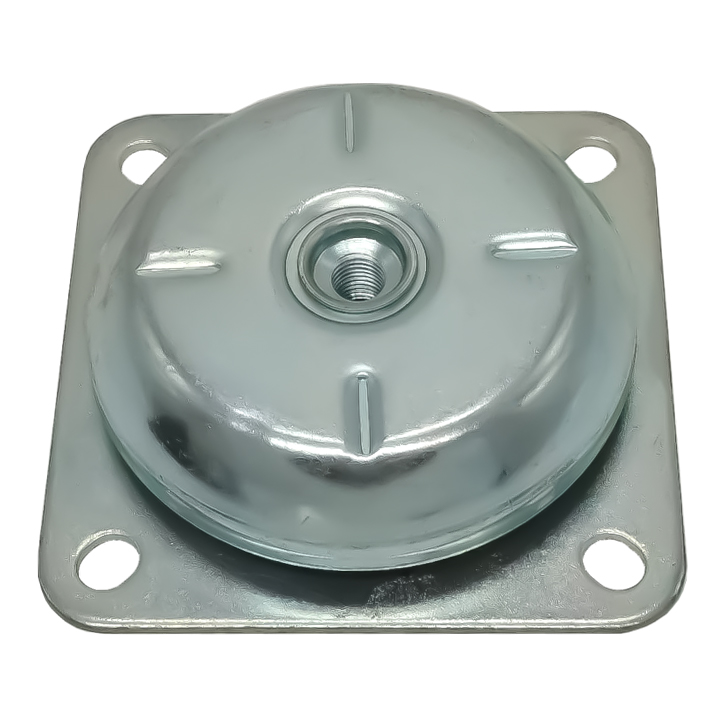

Absorber HPG-R60-1100-M16

  • Nature frequency: 20 - 25 Hz;

  • Rubber hardness: 60°;

  • Operation temperature: -70℃- 600℃;

  • Maximum compression: 6 mm;

  • Maximum load: 1100kg;

  • Withstands continuous acceleration of 1.5g under maximum load;

  • With nano-aerogel felt insulation pad, can withstand a maximum temperature of 1000 ℃, thermal conductivity of less than 0.02.

Send Inquiry

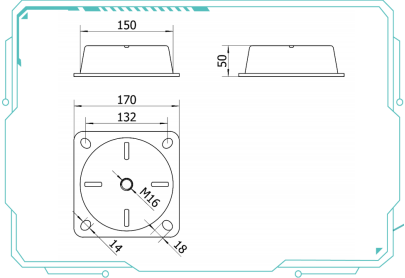

Dimensions

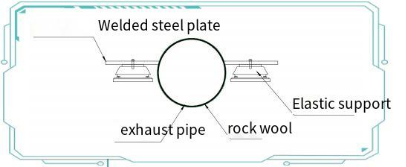

Installation Node Diagram — Rubber Shock Absorber

for Horizontal Exhaust Pipe

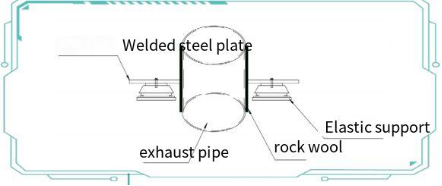

Installation Node Diagram — Rubber Shock Absorber

for Vertical Exhaust Pipe

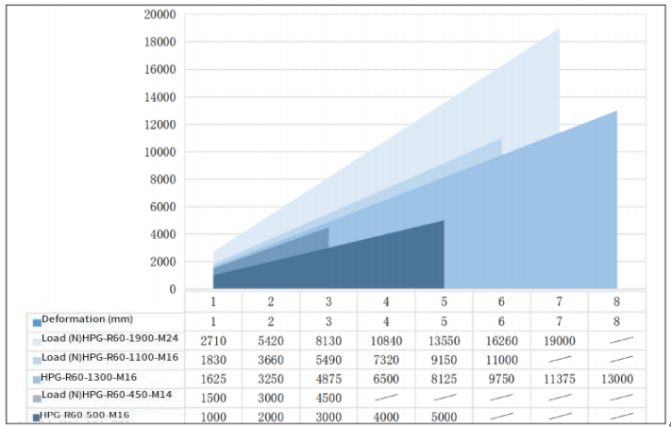

Attenuation Curve
